Mini-Hub

MINI-HUB, STEEL, ZINC-PLATED, 1" BORE, 1/4" KEYWAY & SET SCREWS ONLY, part no. 2561
  • Zinc-Plated Steel
  • 3/4" Bore with 3/16" Keyway
  • 1" or 1-1/4" Bore with 1/4" Keyway
  • Fits Azusa 4-1/2" & 4" Brake Drums
  • Two 4-Hole Bolt Circle Patterns:
    3.228" & 2.875"
DESCRIPTION 3/4" 1" 1-1/4"
Mini-Hub & Hardware Kit, Skin-Pack 2569 2562 2566
Mini-Hub & Hardware Kit, Bulk 2569-A 2562-A 2566-A
Mini-Hub, Set Screws Only (Bulk) 2568 2561 2565

Sprockets suitable for use with Mini-Hub:

Aluminum 4-Bolt Mini Sprockets

Custom Aluminum Sprockets

Steel Sprockets, Standard Sizes

Part No. 2564, Hardware Kit for Mini-Hub with 3.228" Bolt Circle
Part No. 2563, Hardware Kit for Mini-Hub with 2.875" Bolt Circle
DESCRIPTION PART NO.
Hardware Kit for Mini-Hub
with 3.228" Bolt Circle

(Mini-Hub includes 2 set screws)
2564

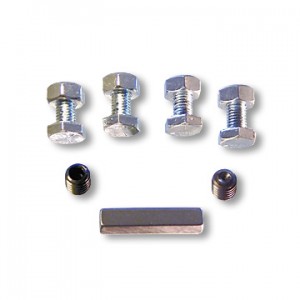

Hardware Kit includes:
4 Bolts, 1/4-28 x 1/2", Zinc Plated 8463
4 Hex Nuts, 1/4-28, Zinc Plated 8500
1 Key, Machine, 1/4" x 1/4" x 1-1/4" 8435



DESCRIPTION PART NO.
Hardware Kit for Mini-Hub
with 2.875" Bolt Circle

(Mini-Hub includes 2 set screws)
2563

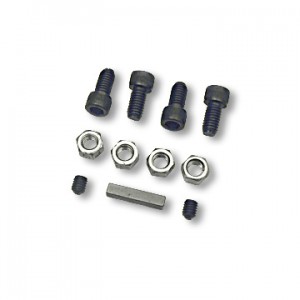

Hardware Kit includes:
4 Sockethead Cap Screws, 3/8-16 x 3/4" 8384
4 Locknuts, 1/4-28, Zinc Plated 8504
1 Key, Machine, 1/4" x 1/4" x 1-1/4" 8435



T5313

CUSTOM ALUMINUM SPROCKETS FOR MINI-HUB
Chain
Size
Bore Holes Bolt
Circle
Minimum
Teeth
Pattern Part No.
#35 2.00" 4@.375 2.875" 34 P5263 T5313-*
#41 (#420) 2.00" 4@.375 2.875" 28 P5263 T5314-*
#40 2.00" 4@.375 2.875" 28 P5263 T5315-*
#428 2.00" 4@.375 2.875" 28 P5263 T5320-*
#520 2.00" 4@.375 2.875" 23 P5263 T5316-*

*When ordering, add teeth number to part no., specify pattern P5263
and specify "Split or "Unsplit."

2167-54                2169

STEEL SPROCKETS SUITABLE FOR MINI-HUB
Chain Teeth Bolt Circle Holes Bore Part No.
#35 60 2.875" 4@.375 2.00" 2164-60
#35 66 2.875" 4@.375" 2.00" 2164-66
#35 72 2.875" 4@.375" 2.00" 2164-72
#35 60 2.875" 4@.375" 2.125" 2169-60
#35 72 2.875" 4@.375" 2.125" 2169-72
#40/41 54 2.875" 4@.375" 2.00" 2167-54
